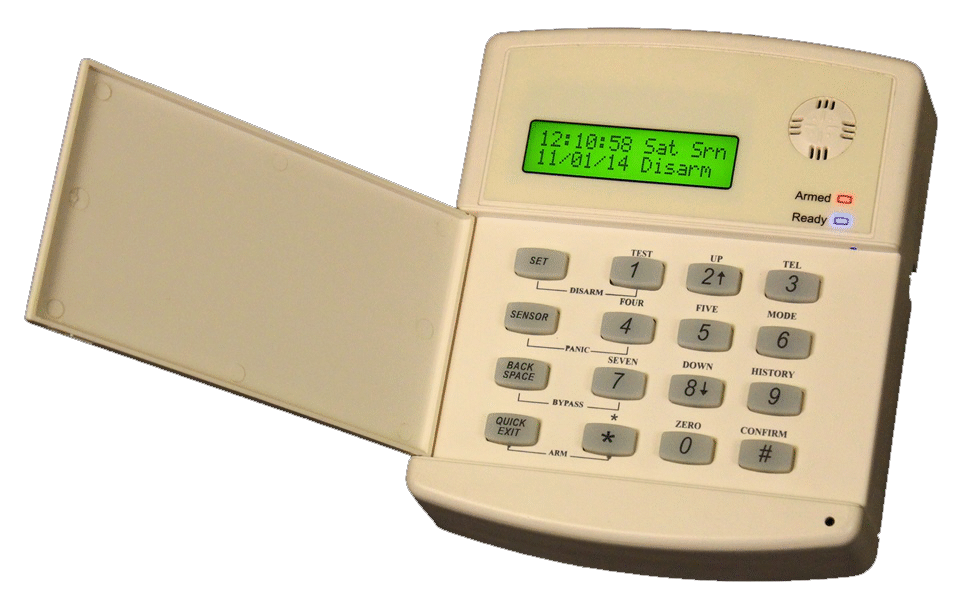

Hybrid Burglar Alarm Systems

Intrusion Alarm System - Main Units

Hybrid Burglar Alarm Systems that simultaneously connect to both Wired and Wireless Sensors.

Key Features

  1. Built-In GSM & SMS Dialler
  2. Connects to 8 Wired Zones + 75 Wireless Sensors simultaneously
  3. All programming via SMS & Android/ iOS App
  4. User definable Names of Wired Zones / Wireless Sensors
  5. Two-Way Communication with the panel

Features

  1. Built-In GSM & SMS Dialler: The system dials up to 6 Telephone numbers and sends SMS through the SIM card in case of intrusion. An alarming sound is played during the call, and a programmable message can also be played through an optional voice card.
  2. Battery Rechargeable Built-In: It has in-built Li batteries for backup lasting up to 12 hours. There is an option to connect additional batteries for longer backups.
  3. 8 Wired Zones & 75 Wireless Sensors: 8 Wired zones & 75 Wireless sensors can be connected simultaneously. Each wired zone can connect to unlimited wired sensors in series, provided the total loop resistance is less than 200 Ohms.
  4. Voice Message played during Intrusion: Upon intrusion, the system calls the registered users and announces the exact Sensor or Zone Number from where intrusion has taken place.
  5. Battery Low SMS: When in-built batteries of the Main Unit or any of the Wireless Sensors (compatible for this feature) goes low, the System alerts the user. The display on the main unit gives exact sensor number along with mild beeps, and SMS is also sent to the telephone numbers.
  6. Programmed by SMS & Android/ iOS App: The system can be completely programmed by SMS and Android/ iOS Application through the registered phone numbers.
  7. User Definable Names of Sensors & Zones: User can give names to the System as well as the Wired Zones & 8 Wireless Sensors. This name of up to 15 characters long is displayed in the SMS received by System.
  8. SIM Balance check: Registered mobile numbers can know the balance amount of the SIM through Keypad of System, SMS and Android/ iOS Application.
  9. VAuto Arm/ Disarm - Day Wise: System can be programmed to ARM / DISARM at 3 different sets of timings. These timings can be different for each day of the week. For example, system can be kept ARMED on Sunday but on rest of the days it can get ARMED at 9PM and DISARM at 8 AM. Up to 10 Holidays in a year can also be separately programmed
  10. Siren - Built In: One Siren comes built into the system with option to connect an external Siren. More than one Sirens can be connected through optional power supply.
  11. Remote Monitoring / Listen-in & Talk: User can make a Telephone call and listen to the voices near the main unit & can even talk through the main unit. The same is true in case of intrusion as well. The system can also be ARMED / DISARMED through the telephone call.
  12. Record of last 100 events with date & time stamping to check the history of various events are stored in the main unit and can be viewed by the user.
  13. Signal Repeaters: Operating distance of Wireless Sensors from the Main Unit can be increased with Signal repeaters. They can be used in series to increase the distance further.
  14. Tamper Switch - In Built: The main unit come with built-in tamper switch which guards it 24 hours. If the unit is tampered with, user is alarmed through Siren & Telephone call
  15. Alert for Door Left Open: When the system is being ARMED, if any door having Magnetic Sensor (wired or wireless) is open, the system will alert the user. The same is true for all wired sensors as well.
  16. Traitor Alert: One or all Wired Zones or Wireless Sensors can be configured for ‘Traitor Alert’ feature. Whenever any of these sensors is open in DISARM mode, the system will give mild beeps thereby alerting the user about doors (used by servants, maids, etc.) being open. The mild beep doesn’t disturb the user, yet keeps him/ her alert. The sensor numbers that are open are displayed on the main unit.
  17. Arm Bypass: User has option to ARM all the Zones or selected Zones.
  18. Electrical Lights ON during Intrusion: Selected Light load can be made to switch ON whenever there is an intrusion.
  19. Multilevel Passwords: It has 1 Master & 5 User Passwords. Master Password can do all operations and programming as well. User level Passwords can only ARM or DISARM the system. The History records would show which Password had ARMED / DISARMED the system.
  20. Additional Keyboard Connectivity: One or more Wireless or Wired Keyboards can be attached for operating the System.

Sensors

Senses intrusion from Doors, Windows etc

MSWRD


Wired type with Tamper Protection + water proof

MSW


Wireless type with Tamper Protection Detects Door / Window open as well as closed + Low Battery Virtual Indication& SMS to user + Can optionally be made Water Proof

MS-SS-Wired


Wired Type for Shutters Available in Plastic & Metal Body

MS-SS-Wireless


Wireless Type for Shutters Available in Plastic & Metal Body>



Beam Sensors

Senses movement of people in open areas like Terrace, boundary wall etc

Single Beam


Wired Out Door Type, and can be converted to wireless by connecting BS-PS-WL which also has built-in Li batteries for back-up during power failure + Protection from Rain, fog, and snow + Dual Beam avoids false alarm due to birds, insects & falling leaves.

Dual Beam




Smoke and Heat Detectors

Detects Fire or Rise in temperature in an area

Smoke Detectors

SDWRD: 4 Wire type Smoke detector + Tamper Protection
SDW: Wireless type + Tamper Protection + Low battery Indication & Sound

Heat Detectors

HDWRD: Wired Type +Tamper Protection + Normal working indicator + Sounds Buzzer when ambient temperature rises beyond 57 Deg C.
HDW: Wireless Type +Tamper Protection + Sends alarm message to Burglar Alarm System when temperature rises beyond 70 Deg C.



Siren

Connects as external siren

SWRD-110db


Wired type with Tamper Protection + water proof
There are various Wire type models with sound level ranging from110 dB to 120 dB. There are models that have Flashing light built-in.They all have option to add Tamper Protection and to make them Wireless type.

FSWRD-120db


Siren 220V AC 1km/ 2km/ 3km




Gas Detector

Senses the presence of Natural GAS / LPG GAS in kitchen

GDWRD


Wired type +Tamper Protection + Light and audio sound when GAS is detected

GDW


Wireless type + Light and audio sound when GAS is detected
