The perfect solution for securing fire exit doors — an integral high-power sounder that activates the moment the door is opened, with tamper protection, sensor-cut alarm and built-in UPS backup.

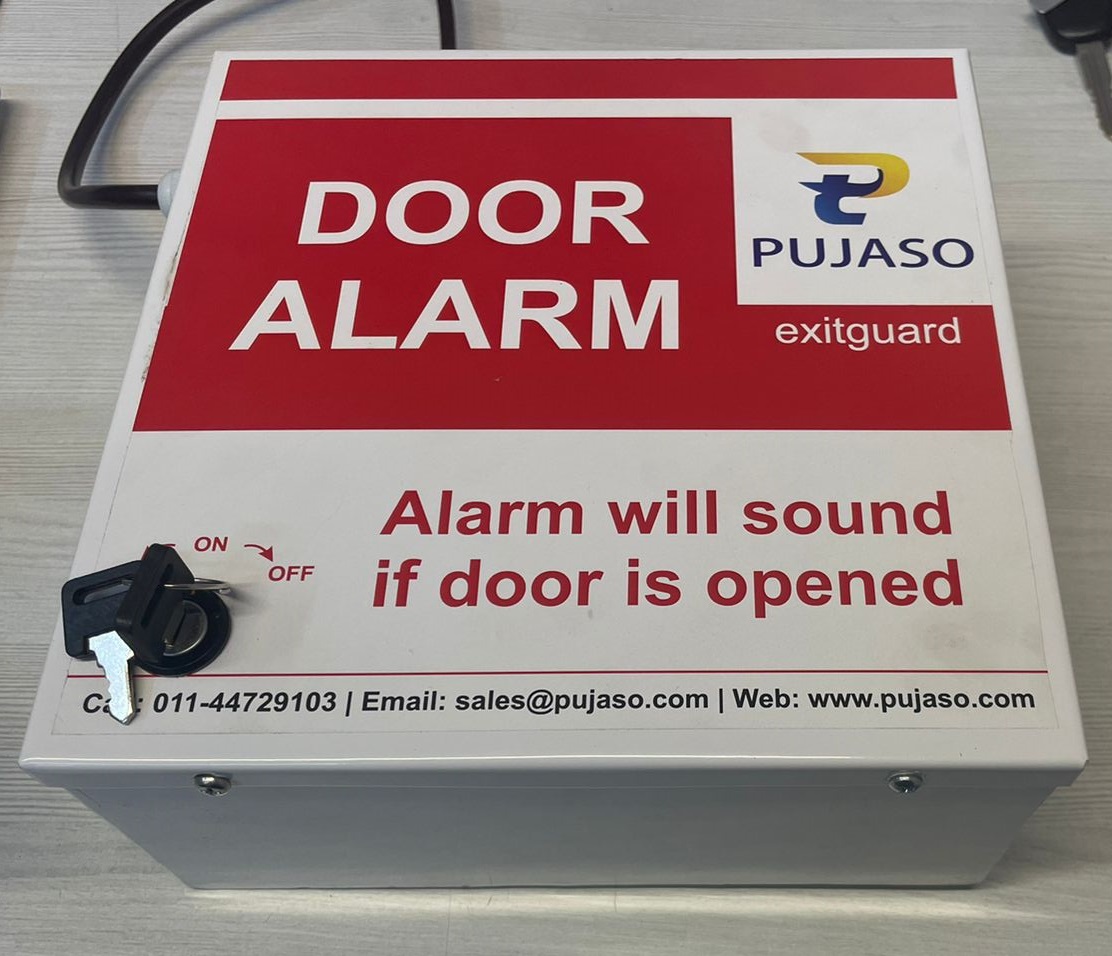

Pujaso Exitguard is a self-contained exit door alarm unit housed in a powder-coated MS metal enclosure. When armed, the device monitors the door contact at all times — the moment the door is opened without disarming, a high-power flash siren sounds instantly to alert everyone in the vicinity.
A rear tamper switch detects any attempt to open or remove the panel. Sensor-wire supervision ensures an alarm is generated if the door contact wire is cut. A key switch lets authorised personnel arm and disarm the system, and the built-in 12V mini UPS keeps the device operational during power failures.
Every Exitguard unit ships with these six built-in protection layers — no extra modules required.
An independent N/C tamper switch is installed at the rear of the panel. Any attempt to open or remove the enclosure immediately triggers the alarm.
A built-in 12V mini UPS keeps the Exitguard fully operational during mains power failures — so your fire exit door is never left unmonitored.
The device continuously supervises the door contact wire. If someone cuts the sensor wire to bypass the alarm, an immediate alert is triggered.
A 12V DC flash strobe siren delivers both an audible alarm and a visual strobe flash — instantly alerting everyone in the vicinity when the door is opened.
A secure key-controlled on/off switch lets authorised personnel arm and disarm the system — preventing accidental or unauthorised deactivation.
In addition to the siren, the integrated strobe beacon provides a clear visual alarm indication — critical in noisy environments where audio alone may be missed.
| Parameter | Specification |
|---|---|
| Supply Voltage | 230 VAC |
| Supply Input Current | 0.25 A |
| Tamper | Independent N/C |
| Enclosure | MS Metal (Powder Coated) |
| Door Contact | NO / NC Magnetic Door Contact |
| Siren | 12V DC Flash Strobe Siren |
| UPS | 12V Mini UPS (Internal) |
| Arm / Disarm Switch | Key Controlled On/Off Switch |
The Exitguard unit is mounted on or beside the exit door. The magnetic door contact is fixed to the door frame and connected to the device.
Turn the key switch to the ON position to arm the system. The device is now actively monitoring the door contact and tamper switch.
If the door is opened, the sensor wire is cut, or the panel is tampered with, the high-power flash siren activates instantly.
Authorised personnel silence the alarm and disarm the system using the key switch — then re-arm once the exit is secured.
Exitguard is a Pujaso in-house product — designed, manufactured and supported entirely by our team. Every unit is tested before dispatch and backed by our nationwide installation and after-sales support network.
Contact us for pricing, bulk orders, installation and AMC support for Pujaso Exitguard.
